PZ-2000FT Series XYZ Automated Stage with Piezo Z-Axis Top Plate
About the PZ-2000FT
The PZ-2000FT series is an integrated top-plate option available for many of our XY stages. When paired with our control electronics, it provides a fast, high resolution, and highly repeatable means of controlling focus for 3D samples. Because the PZ-2000FT replaces the standard top-plate of the stage, it still accepts standard K-style sample inserts for slides, various Petri dishes, multiwell plates, etc. With travel ranges of 120 mm x 75 mm and more, three stacks of piezo elements move 150, 300, or 500 μm with near nanometer accuracy.
For help selecting the best XY stage for your application, please visit our Product Configuration Tool.
PZ-2000FT Features
- Flat stage top allows easy placement of micromanipulators on either side
- Closed-loop control of the X-, Y-, and Z-axes for precise positioning and highly repeatable focusing
- Wide dynamic speed range with adjustable trapezoidal move profiles
- Smooth adjustable dual-range joystick control
- Travel range will scan full well plate in most circumstances
- Proven operation with many software packages

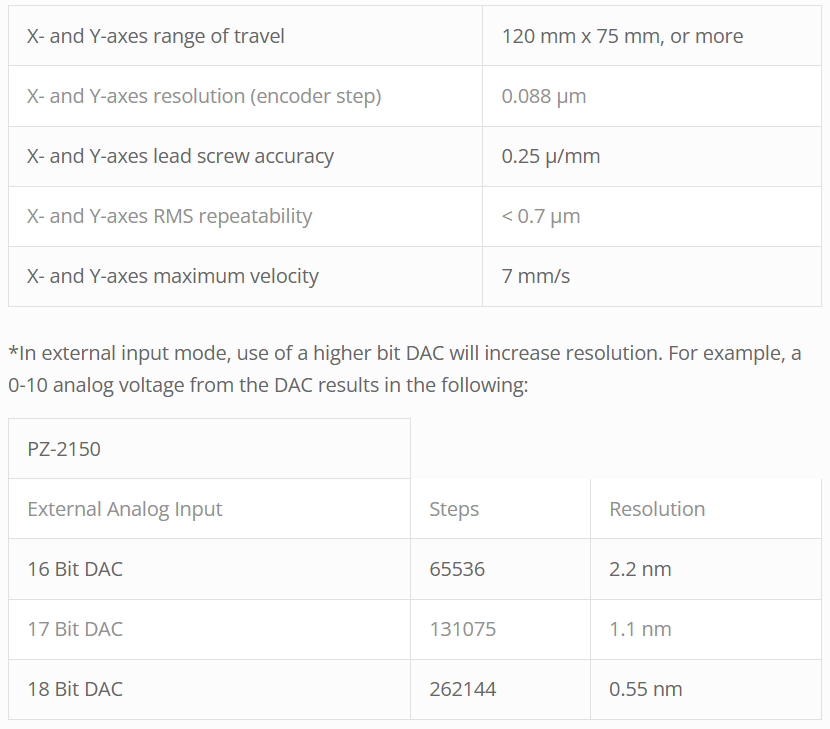

PZ-2000Ft Specifications for Standard Configuration
PZ-2000FT Options
- X- and Y-axes linear encoders for high-accuracy positioning. Linear encoder resolution is 10 nm, with a scale accuracy of 0.3 μm per 10 mm and 3 μm per 100 mm. Positioning resolution at sample is < 50 nm.
- Auto focus (requires NTSC or PAL composite video signal).
- ASI’s proven line of Z-axis drives can also be added to the fine focus shaft of the microscope to provide Z-axis positioning with a resolution of 50 nm throughout the range of the microscope’s travel. The piezo unit can then be used for fast and accurate Z-axis positioning to any point within the range of travel.
- Other lead screw pitches are available for faster XY translation, or for more precise positioning when using standard rotary encoders.
