IPZ-3000
Pricing inquiry (see details)

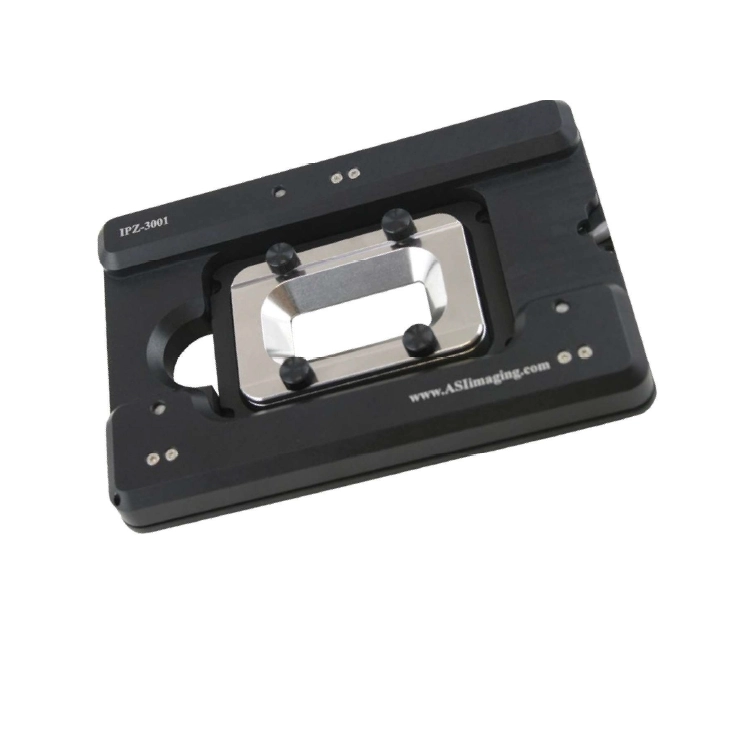

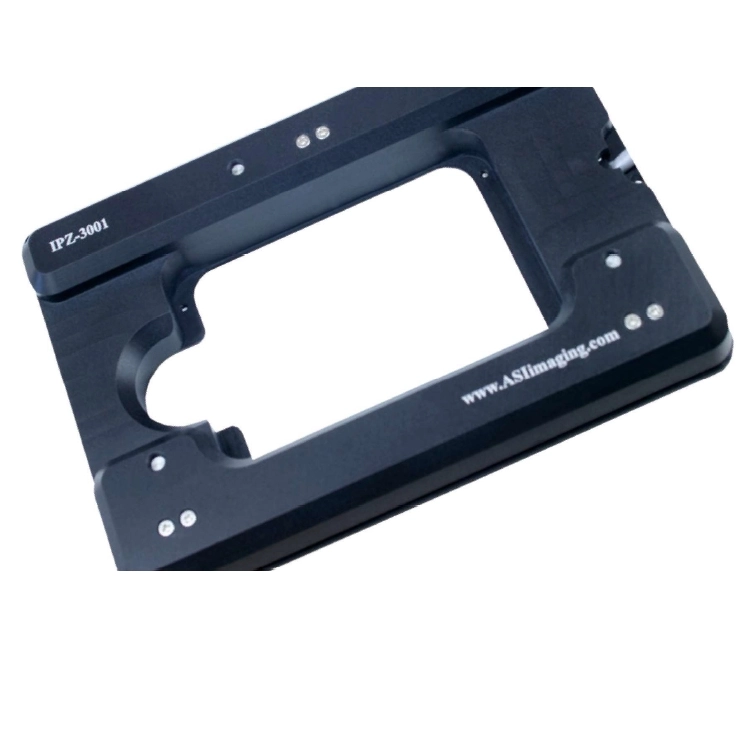

IPZ-3000 Series Piezo Z-Axis Top Plate Insert
About the IPZ-3000 Series
The IPZ-3000 series piezo inserts will fit in most microscope stages with the standard 110 mm x 160 mm (K-size) stage insert opening. The piezo insert uses the same proven technology as our PZ-2000 series as a simple retrofit control on an existing XY stage. Several sample holders are available to fit the IPZ-3000 inserts for holding small dishes, slides or chambers. The piezo can be controlled with the MS-2000 controller, providing both USB and RS-232 communication to a host computer. Users with MS-2000 configuration for XY only can upgrade their controllers for Z control.
IPZ-3000 Series Features
- Proven operation with many software packages
- Closed loop control of the Z-axis position for highly repeatable focusing
- Several travel ranges available, 150 μm, 300 μm, and 500 μm

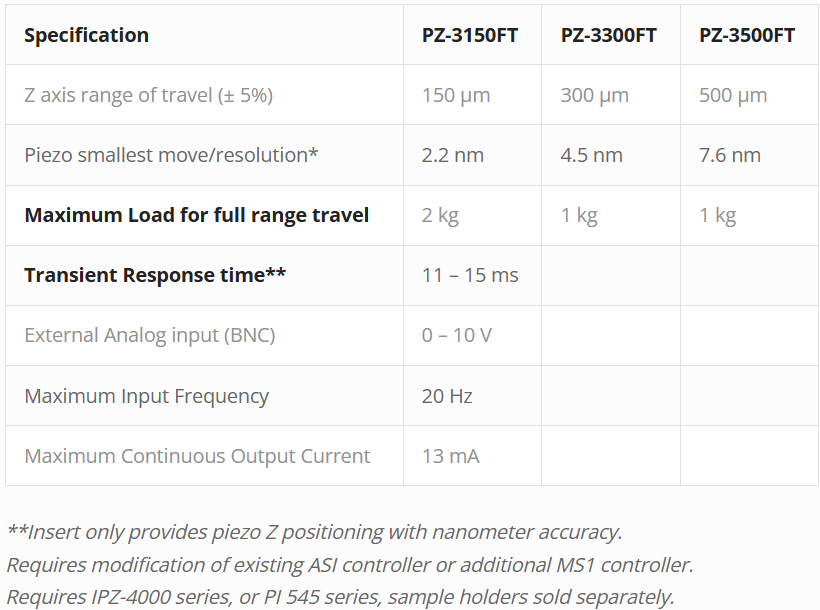

Specifications

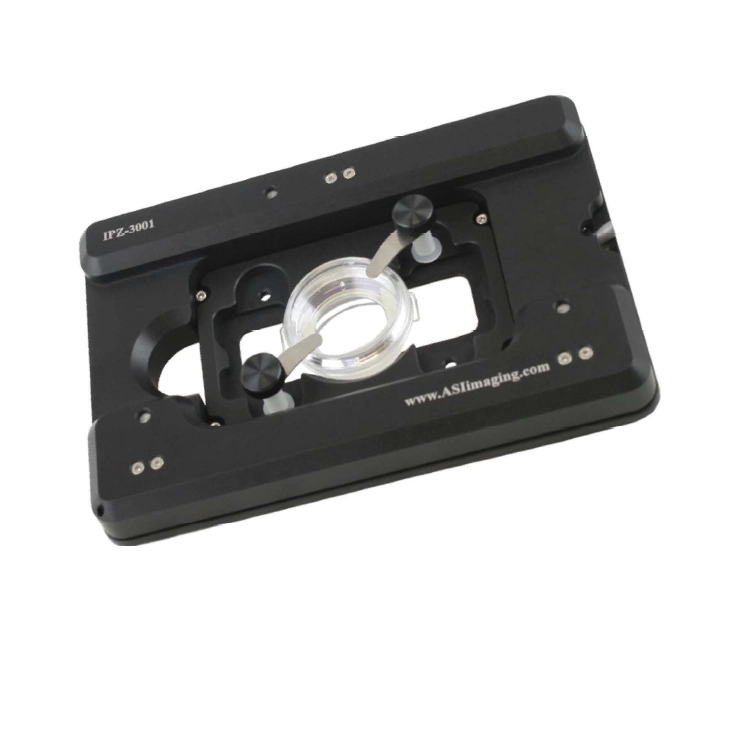

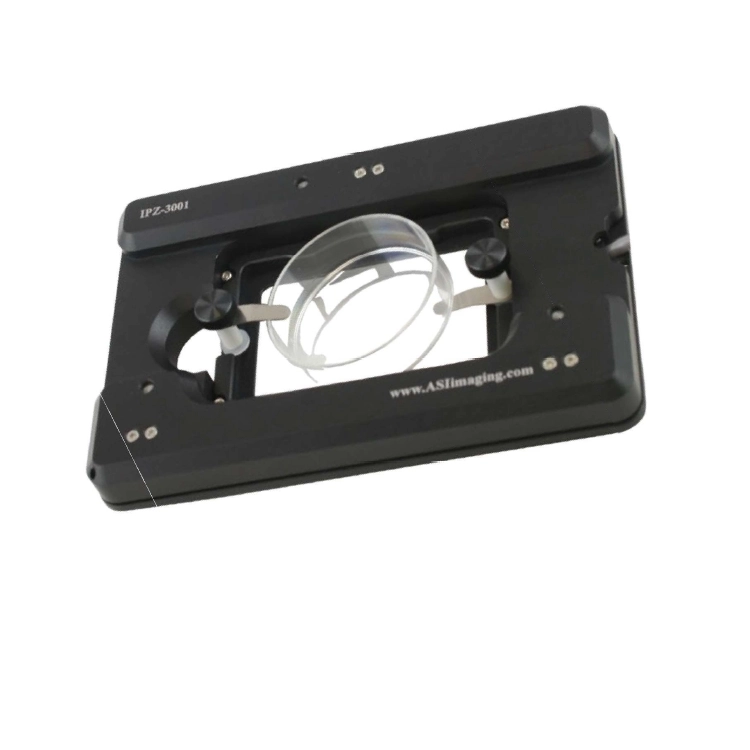

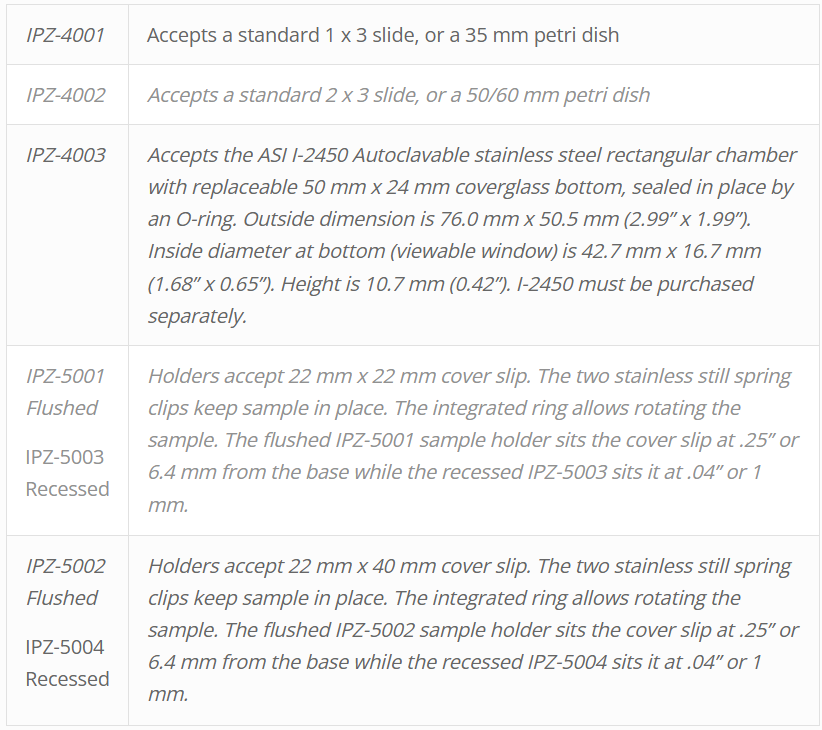

IPZ-3000 Series Sample Holder
About the IPZ-3000 Series
The IPZ-3000 series piezo inserts will fit in most microscope stages with the standard 110 mm x 160 mm (K-size) stage insert opening. The piezo insert uses the same proven technology as our PZ-2000 series as a simple retrofit control on an existing XY stage. Several sample holders are available to fit the IPZ-3000 inserts for holding small dishes, slides or chambers. The piezo can be controlled with the MS-2000 controller, providing both USB and RS-232 communication to a host computer. Users with MS-2000 configuration for XY only can upgrade their controllers for Z control.
IPZ-3000 Series Features
- Proven operation with many software packages
- Closed loop control of the Z-axis position for highly repeatable focusing
- Several travel ranges available, 150 μm, 300 μm, and 500 μm
Specifications
IPZ-3000 Series Sample Holder
