PZM-2000 OEM Manual Stage with Piezo Z-Axis Top Plate
About the PZM-2000
If you do not require automated XY movement, but do require automated Z-axis positioning for acquiring precise Z-axis stacks, then the PZM-2000 is the solution. On select models of inverted microscopes, ASI can modify or exchange your existing OEM stage with a PZM-2000 unit. We can procure a manual OEM stage for you, if necessary.
The PZM-2000 consists of ASI’s proven piezo top plate mounted within your existing OEM stage. This requires a completely new top plate be machined for the OEM stage, however, this allows us to provide an elegant solution. The optional PZM-C Controller complements the ASI PZM-2000 piezo-Z manual microscope stage retrofit.
The PZM-2000 has been specifically designed to provide a high resolution, and highly repeatable, means of controlling the Z-position of the microscope stage. The X- and Y- axes are manually controlled utilizing the original OEM stage controls. The piezo top plate of the stage accepts standard K-size slide inserts that are available for any sample, i.e., slides, Petri dishes, multi-well plates, etc. The slide insert is moved in the Z-axis via a piezo element with a range of 100 μm and with nanometer accuracy (200 μm and 500 μm ranges are also available). By moving the sample in the Z-plane, any objective can be used, eliminating twisting wires or needed spacers as required when a piezo element is put onto a single objective. The piezo stage can be controlled remotely with a 0-10 VDC analog input voltage, or optionally, with a PZM-2000 controller or a calibrated manual ten-turn potentiometer.
PZM-2000 Features
- PClosed-loop control of Z-axis for precise and highly repeatable focusing
- Nanometer-scale resolution, repeatability, and accuracy
- Proven operation with many popular software packages
- Stage wings for even more room for attachments

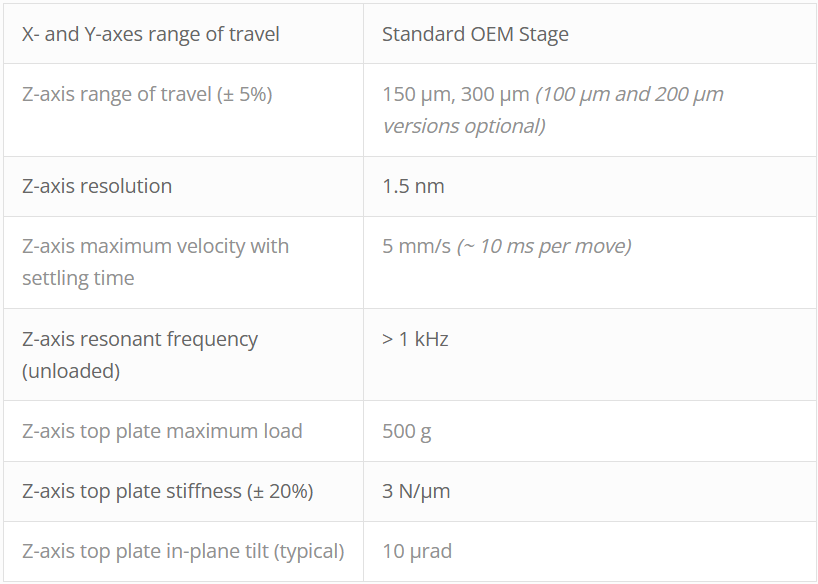

PZM-2000 Specifications

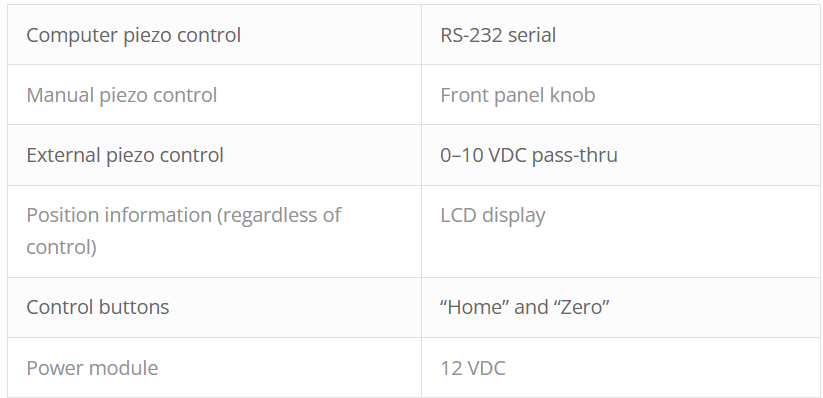

MS1-PZM Controller Specifications
About the PZM-2000
If you do not require automated XY movement, but do require automated Z-axis positioning for acquiring precise Z-axis stacks, then the PZM-2000 is the solution. On select models of inverted microscopes, ASI can modify or exchange your existing OEM stage with a PZM-2000 unit. We can procure a manual OEM stage for you, if necessary.
The PZM-2000 consists of ASI’s proven piezo top plate mounted within your existing OEM stage. This requires a completely new top plate be machined for the OEM stage, however, this allows us to provide an elegant solution. The optional PZM-C Controller complements the ASI PZM-2000 piezo-Z manual microscope stage retrofit.
The PZM-2000 has been specifically designed to provide a high resolution, and highly repeatable, means of controlling the Z-position of the microscope stage. The X- and Y- axes are manually controlled utilizing the original OEM stage controls. The piezo top plate of the stage accepts standard K-size slide inserts that are available for any sample, i.e., slides, Petri dishes, multi-well plates, etc. The slide insert is moved in the Z-axis via a piezo element with a range of 100 μm and with nanometer accuracy (200 μm and 500 μm ranges are also available). By moving the sample in the Z-plane, any objective can be used, eliminating twisting wires or needed spacers as required when a piezo element is put onto a single objective. The piezo stage can be controlled remotely with a 0-10 VDC analog input voltage, or optionally, with a PZM-2000 controller or a calibrated manual ten-turn potentiometer.
PZM-2000 Features
- PClosed-loop control of Z-axis for precise and highly repeatable focusing
- Nanometer-scale resolution, repeatability, and accuracy
- Proven operation with many popular software packages
- Stage wings for even more room for attachments
PZM-2000 Specifications
MS1-PZM Controller Specifications
